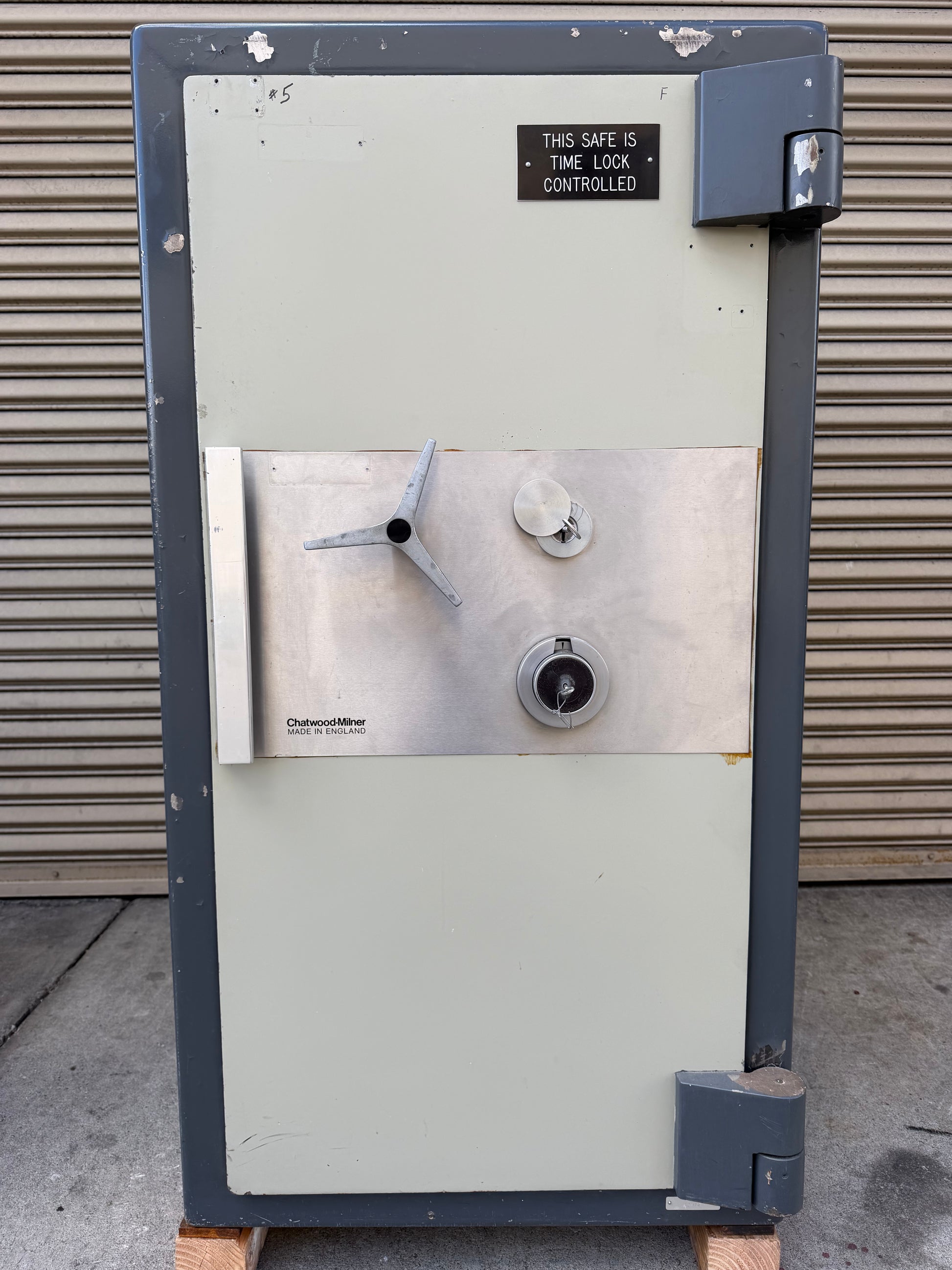

Chatwood - Milner Model 462019

MONARCH MONEY AND JEWELLERY SAFE

OXYACETYLENE EXPLOSIVE AND DRILL RESISTIVE

Modern techniques versus modern criminals, that is the philosophy behind the Chatwood Milner Monarch Acme Safe. It is a safe which will resist allI forms of attack, for today's safebreaker is practised in up-to-the-minute metal cutting techniques, skilled in the use of explosives and an experienced operator with an armoury more extensive, lethal and scientific than ever before. It is science that has given the safecracker these new opportunities and it is science that has given the safemaker the means to combat them. The Chatwood Milner Monarch Acme Safe is the product of exhaustive research into protective materials and techniques. The core of its protection is Chatwood Milner torch and drill resisting armour, a composite with a matrix of thermal strength and toughness incorporating inclusions to resist drilling. Advanced manufacturing techniques have enabled Chatwood Milner engineers to produce a safe body in a single cast unit of consistent strength. Added to this is Chatwood Milner isolator boltwork, a revolutionary design of locking mechanism, which not only provides highly sophisticated drill protection but incorporates advanced techniques for protection against explosive attack.

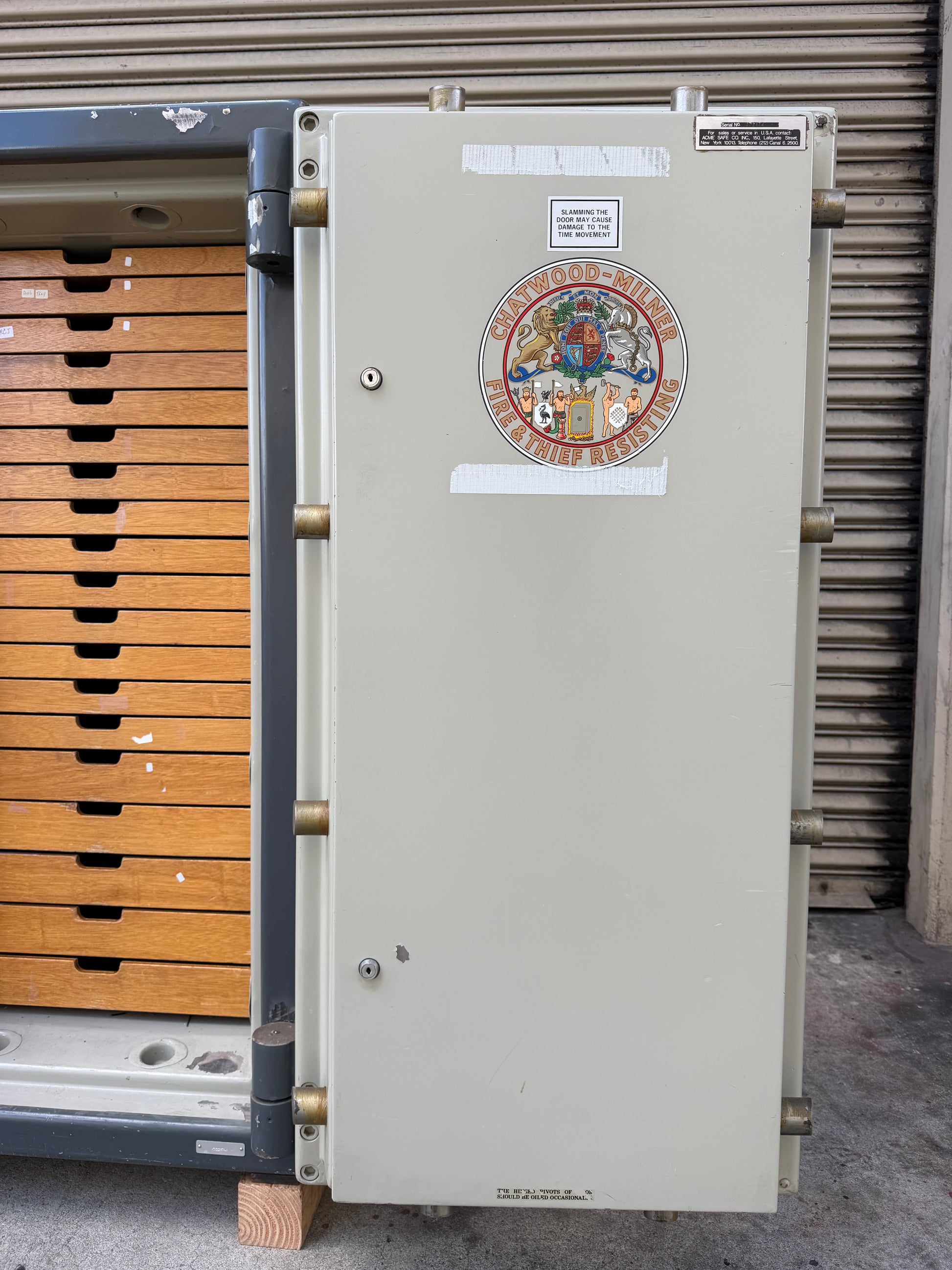

SPECIFICATION Door 7in thick and rectangular the door is constructed from outer and inner steel plates continuously welded to form a single structure and enclosing a 2in thick solid layer of Chatwood Milner torch and drill resisting armour to produce a total metal thickness of 2 in. The total strength of this door is to effectively resist electric drills, oxyacetylene torches, forcing tools, sledgehammers and explosives. The boltwork chamber is protected over its whole area by torch and drill resisting armour, the whole making up a super burglar resistive door. Body By enclosing a 2in thick solid layer of torch and drill resisting armour which has been cast into (1) piece in a steel outer and inner lining Chatwood Milner engineers have produced a safebody of exceptional strength. This 2in thick solid layer of torch and drill resisting armour cast in one (1) piece eliminates the necessity of welding five (5) slabs of material together to form a body. Welded slabs produce weak welded seams. The Chatwood Milner one (1) piece cast construction has no weak welded seams. This one (1) piece construction eliminates the possibility of de-slabbing the entire top, sides, bottom or back of the safe as is possible with a safe manufactured with slab construction. This construction also eliminates the possibility of weak seams splitting open when explosives or wedges are used because Chatwood Milner construction does not produce a slab constructed safe with weak welded seams. We would appreciate the chance to review this important feature with you. Boltwork 1 in diameter steel sliding bolts extend from all four (4) sides of the door to ensure a solidarity with the body. The 2in thick solid layer of torch and drill resisting armour protects the boltwork and locking mechanism from every angle. On closing the combination lock or keylock the internal boltwork mechanism is disconnected from the external turn handle. The handle revolves free as though it were broken, without any possibility of re-engaging the internal boltwork mechanism until the proper combination numbers are used to open the combination lock and the proper key used to open the keylock. Any attempt to force an entry by dislodging the combination lock or keylock is thereby defeated since with the handle and boltwork system disconnected from one another there is no means of retracting the four (4) way boltwork system. Also by dislodging the combination lock and keylocking mechanisms or cutting the holding arms to the boltwork frames, the internal boltwork system relocks within itself not allowing the bolts to be withdrawn into an open position. Relocking devices are incorporated in the locking system to ensure that the bolt throwing mechanism remains positively locked in the extended position under various types of burglary attack. We would appreciate the chance to review this importantfeature with you. Combination Lock with spy proof dial Five (5) movement spy proof dial combination lock is capable of 100,000,000 different combination changes. It is virtually pick proof. The spy proof dial design prevents unauthorised individuals from seeing the numbers dialled when you are operating the dial to unlock the combination lock. Dial Check Lock You can keylock the dial in the combination lock in the open or closed position. This prevents the dial from being moved. During the day when the combination lock is in the open position the dial cannot be turned and thereby the safe accidentally locked. When you close the combination lock, upon leaving the premises, you can again lock the dial so that it cannot be turned by any unauthorised intruders who may try to manipulate the lock. Change your own combination - whenever you wish Since security is the prime purpose of this safe, the combination is set by the individual responsible for the contents of the safe. No unauthorised person should know the combination numbers. We supply simple written instructions to you so that you can change your own combination at regular intervals.
